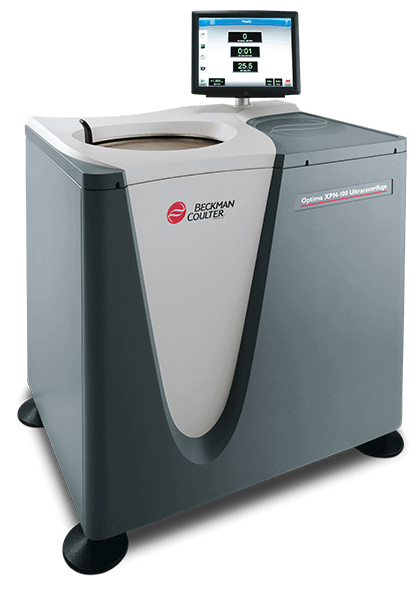

OPTIMA XPN - 90
Product No:A94468
No other floor-model preparative ultracentrifuge offers this level of design, functionality, and performance. Possessing all of the attributes of our entry-level model, the XE, the Optima XPN boasts additional enhancements that will simplify use, optimize control and security, and increase productivity. You’ll applaud its intelligent user interface, networking and remote control capabilities, and energy efficiency. And of course, our total system design backed by our exclusive rotors, labware, and unparalleled service.
Resources + Tools
Product Specifications
| Platform | Floor Prep |
| Maximum Speed | 90,000 RPM |
| Maximum g-Force | 694,000 xg |
| Acceleration | 10 acceleration profiles |
| Deceleration | 11 deceleration profiles, including coast |
| Drive Type Cooling | Quiet drive technology / air cooled |
| Zonal Capability | True |
| Pollution Degree | 2 |
| Operating Mode(s) | Time, ω²t, and RCF |
| Material(s) | Coated Polycarbonate, Acrylic Baked Enamel, Polyurethane |
| Weight | 485 kg (1068 lbs) |
| Width | 94 cm |
| Depth | 68.1 cm (26.8 in) |
| Height | 125.7 cm (49.5 in) |
| Power Requirements | 200-240 VAC, 30A, 50/60 Hz |
Related Products or Parts
Type 19 Fixed-Angle Aluminum Rotor
The Type 19 is a fixed angle rotor with a tube angle of 25 degrees from the axis of rotation. The rotor can hold up to six 250-mL bottles for centrifugation and is used in Beckman Coulter class H, R, and S ultracentrifuges.
SW 40 Ti Swinging-Bucket Rotor Package
The SW 40 Ti is a swinging bucket rotor designed to centrifuge up to six tubes with a rating of up to 40,000 RPM, max g-force of 285,000 x g, and a nominal rotor capacity of 84 mL. Used in Beckman Coulter class H, R, and S preparative ultracentrifuges.
SW 40 Ti Swinging-Bucket Rotor
The SW 40 Ti is a swinging bucket rotor designed to centrifuge up to six tubes with a rating of up to 40,000 RPM, max g-force of 285,000 x g, and a nominal rotor capacity of 84 mL. Used in Beckman Coulter class H, R, and S preparative ultracentrifuges.
SW 41 Ti Swinging-Bucket Rotor Package
SW 41 Ti Rotor Package; For use in instruments classified: HRS Major Applications: Rate-zonal and isopycnic centrifugation of viruses, rate-zonal centrifugation of RNA.
SW 41 Ti Swinging-Bucket Rotor
For use in instruments classified as HRS. Major Applications: Rate-zonal and isopycnic centrifugation of viruses, rate-zonal centrifugation of RNA.
SW 60 Ti Swinging-Bucket Rotor Package, 6 x4 mL, 60.000 rpm
Major applications: Rate-zonal centrifugation of proteins and RNA. Differential centrifugation of subcellular fractions. SW 60 Ti Rotor Package includes: SW 60 Ti Swinging-Bucket Rotor (335649); Cap Tool 328874; Polypropylene Tubes (2 boxes) 344062; Ultra-Clear Tubes 331313; Bucket Holder Rack 335148; Vacuum Grease 306812; Spinkote Lubricant 331155; Overspeed Disks, 60,000 rpm 868638; O-ring for Bucket (qty. 1)
Type 50.2 Ti Fixed-Angle Rotor, 50.000 rpm, 302.000 x g, 12 x 39 mL
Type 50.2 Ti rotor assembly with 3 each 834301 O-rings, 3 each 854519 O-rings, and 2 each 330336 overspeed disks.
Type 45 Ti Fixed-Angle Titanium Rotor
Major applications: Differential centrifugation of large volumes of subcellular fractions and viruses.
Type 70.1 Ti Fixed-Angle Titanium Rotor
For use in instruments classified: H R S. Major Applications: Differential centrifugation of subcellular particles.
SW 55 Ti Swinging-Bucket Rotor Package
SW 55 Ti Rotor Package Includes: Rotor, Cap Tool, Tubes, Bucket Holder Rack, Vacuum Grease, Spinkote Lubricant, Overspeed Disks and O-rings for Bucket.
