NVT 65 Near-Vertical Rotor, 65.000 rpm, 402.000 x g, 8 x 13.5 mL
Product No:362755
NVT 65 Near-Vertical Titanium Tube Rotor Assembly, Includes: Part Number Description: 349290 Washers, 375705 Vise, 330338 Overspeed Disks, 65,000 rpm, 858121 Torque Wrench, 976959 Torx Plug-Wrench Adapter.
Note: Non-precipitating solutions up to 1.7 g/mL in density can be run in this rotor without a reduction in rotor speed. For speed reductions for CsCl prescription, refer to the rotor manual.
For use in Optima-Series ultracentrifuges and/or instruments classified: RS
Resources + Tools
Product Specifications
Platform | Floor Prep |
Rotor Type | Near-Vertical (Ultracentrifugation) |
Angle | 7.5 |
Maximum RPM | 65,000 rpm |
Max g-Force | 402,000.00 |
k-Factor | 21 |
Number of Tubes | 8x14 mL / 16x76 mm(8x14 mL / 1x3 in) |

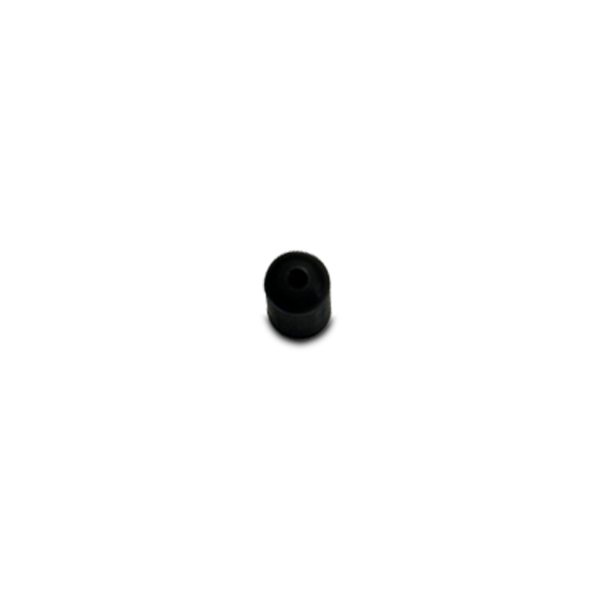

Caps and Spacers | 349900 │ 349901 │ 356571 │ 362202 |
Nominal Capacity | 108 mL |

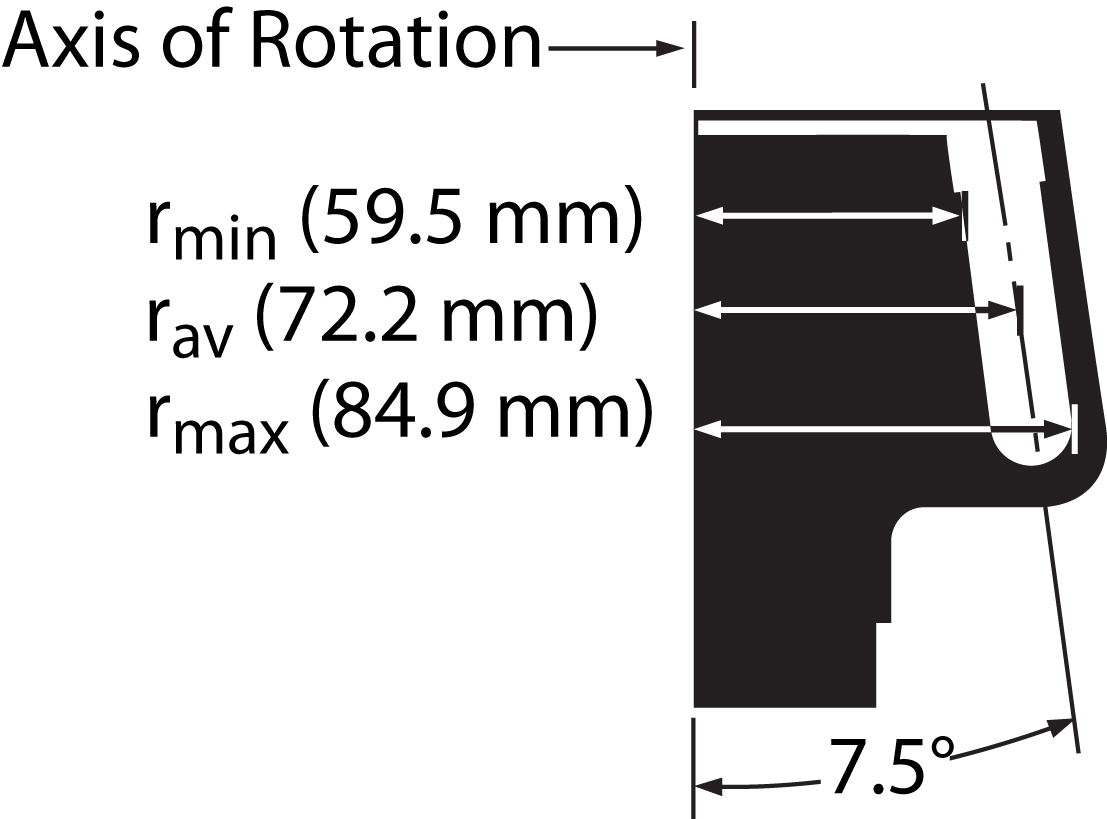

rMAX | 84.9 |
rMIN | 59.5 |
rAV | 72.2 mm |
BioSafe | Bio-Enhanced |
Materials | Titanium |
Package Quantity | 1 |
