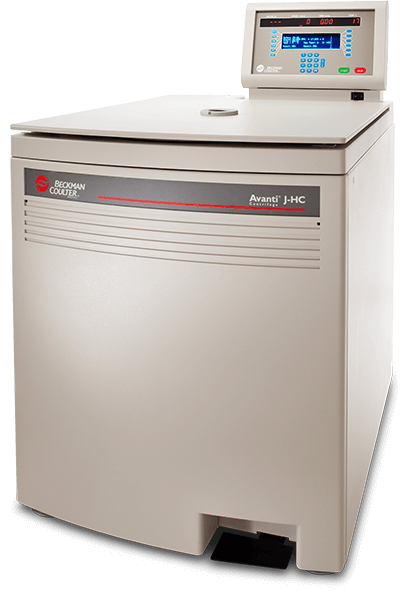

Avanti® J-HC High Capacity Centrifuge, 50/60 Hz, 200/208/240 V

Product No:367501

Efficiency, convenience and total control. The J-HC High Capacity Centrifuge provides you with a complete solution for batch bioprocessing with performance and biocontainment capabilities beyond high-speed or super-speed centrifuges. Spin a maximum of nine liters at speeds of 5,000 RPM and 7,480 x g for greater sample throughput. Process up to 36 liters per hour when harvesting bacteria. Enhanced operator safety is provided with disposable HarvestLine System Liners. The J-HC includes a high-torque, energy efficient drive for the fastest acceleration and deceleration possible with gentle precision. Also, advanced programmability, automatic rotor identification and imbalance safety check, CFC-free refrigerants, Friction Reduction System (FRS) for optimum temperature control, low energy consumption and low heat output. Includes Paperless documentation, data management, and current good manufacturing practice (CGMP) compliance with the Spintrace II network software. The J-HC is the highest capacity centrifuge in its class and provides the fastest accel and decel times with exclusive Switched Reluctance (SR) Drive technology.

Product Specifications

Platform Avanti
Maximum Speed 10,000 rpm
Maximum g-Force 17100 x g
BioSafe No
Acceleration Maximum or Slow
Deceleration Maximum, Slow, Timed (1-10 minutes from 500-0 rpm) or Off
Timed Run 1 min to 99 hrs, 59 mins (timed run); Total centrifuge effect (g-seconds) or Continuous hold
Max Capacity Volume Range Up to - 9 L
Refrigeration System Non-CFC, non-ozone depleting refrigerant
Temperature Range(s) -10°C to +40°C
Pollution Degree 2
Environmental Conditions -10°C to 40°C in 1° increments
Installation Category II
Software Virtual Network Computing (VNC), Mobile Fuge app for Apple iOS and Android
Material(s) Steel, Structural Foam
Finish Polycabonate overlay on top of surface door, Powder Coat Paint
Weight 300 kg(661.4 lb)
Width 71 cm(28 in)
Depth 86 cm (102.0 cm with air direviter extending)
Height 86 cm (152 cm with door open)
Clearances 7.6 cm (sides) & 16 cm (rear)
Humidity Restrictions < 95% (non-condensing)
Power Requirements 200/208/240 V, 50/60 Hz
